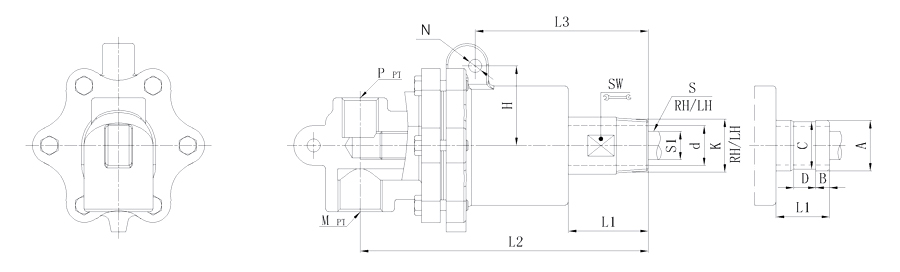

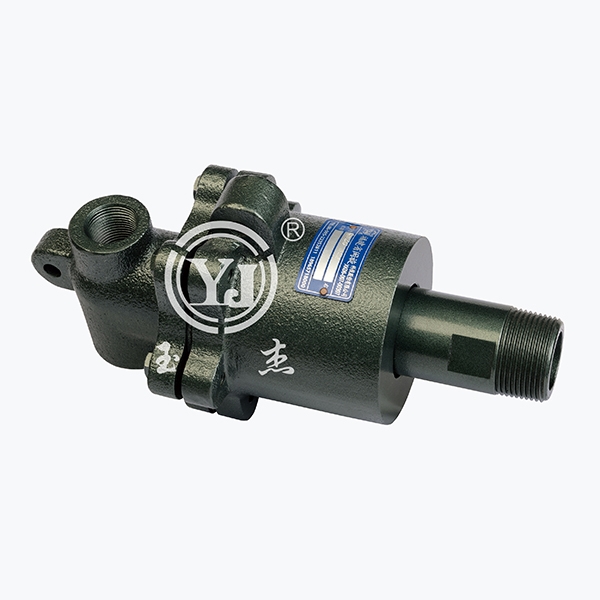

| Model | K | M | P | S | d | L1 | L2 | L3 | N | SW | H | Flange outer tube size control table | ||||
| A | B | C | D | |||||||||||||
| 20A | 3/4" | R3/4" | Rc3/4" | Rc1/2" | Rp1/4" | 18 | 50 | 155 | 120 | 10 | 24 | 50 | / | / | / | / |
| Flange connection | Rc3/4" | Rc1/2" | Rp1/4" | 18 | 50 | 155 | 120 | 10 | / | 50 | 26 | 11 | 24 | 16 | ||
| 25A | 1" | R1" | Rc3/4" | Rc1/2" | Rp3/8" | 23.5 | 53 | 171 | 122 | 10 | 32 | 52 | / | / | / | / |
| Flange connection | Rc3/4" | Rc1/2" | Rp3/8" | 23.5 | 53 | 171 | 122 | 10 | / | 52 | 34 | 12 | 32 | 18 | ||
| 32A | 1-1/4" | R1-1/4" | Rc1" | Rc3/4" | Rp1/2" | 30 | 71 | 207 | 125 | 10 | 41 | 66 | / | / | / | / |
| Flange connection | Rc1" | Rc3/4" | Rp1/2" | 30 | 71 | 207 | 125 | 10 | / | 66 | 40 | 13 | 38 | 20 | ||
| 40A | 1-1/2" | R1-1/2" | Rc1-1/4" | Rc3/4" | Rp3/4" | 36 | 69 | 255 | 176 | 14 | 46 | 92 | / | / | / | / |
| Flange connection | Rc1-1/4" | Rc3/4" | Rp3/4" | 36 | 69 | 255 | 176 | 14 | / | 92 | 47.8 | 13 | 45 | 20 | ||
| 50A | 2" | R2" | Rc1-1/2" | Rc1" | Rp1" | 46 | 80 | 287 | 208 | 14 | 55 | 100 | / | / | / | / |
| Flange connection | Rc1-1/2" | Rc1" | Rp1" | 46 | 80 | 287 | 208 | 14 | / | 100 | 60 | 16 | 57 | 24 | ||
| 65A | 2-1/2" | R2-1/2" | Rc2" | Rc1-1/4" | Rp1-1/4" | 58 | 82 | 315 | 230 | 20 | 70 | 102 | / | / | / | / |
| Flange connection | Rc2" | Rc1-1/4" | Rp1-1/4" | 58 | 82 | 315 | 230 | 20 | / | 102 | 74 | 19 | 70 | 24 | ||
| 80A | 3" | 3" above can call us to request to design and production. | ||||||||||||||
